Work Order Scheduling Page

https://chatgpt.com/canvas/shared/692c52e6c7708191b529965e0b29c16b - Clickable

1. Purpose & Scope

The Work Order Scheduling Page is designed to allow planners and production supervisors to allocate Work Orders to production lines at specific time periods. The page supports:

• Viewing Unscheduled and Scheduled Work Orders.

• Assigning a Work Order to a Line for a specific time window.

• Adjusting scheduling quantities for partially scheduled Work Orders.

• Removing (unscheduling) Work Orders that have not yet started.

• Enforcing constraints such as preventing unscheduling for schedules that already have run records.

This page directly interacts with the following backend schema elements:

• work_order

• schedule

• production_run (read-only, for determining if unscheduling is allowed)

• line (Line master)

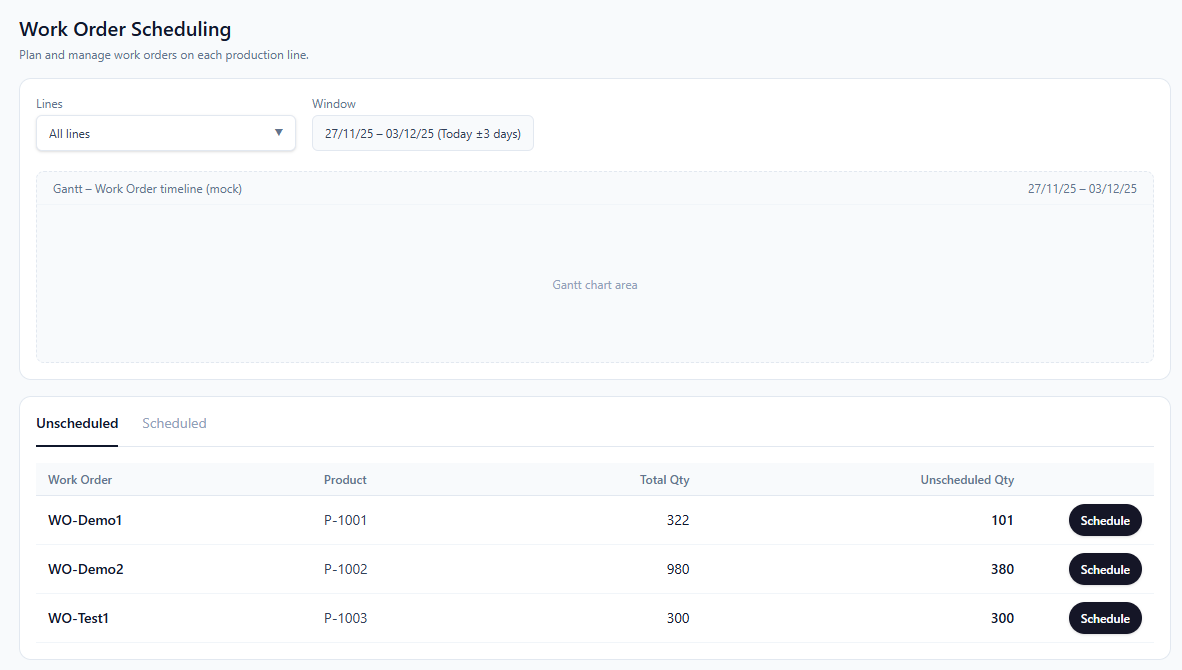

2. Page Layout Overview

The Scheduling Page has four major sections:

1. Header — Name and purpose of the page.

2. Filters & Gantt Placeholder — Multi-select Line filter, fixed date window, and Gantt visualization placeholder.

3. Unscheduled / Scheduled Tabs — Tables showing available and currently scheduled Work Orders.

4. Schedule Work Order Popup — Form to insert a schedule record.

This matches the UI mockup implemented in Canvas (Nova Mfg Scheduling Tab Mockup).

3. Filters & Gantt Timeline

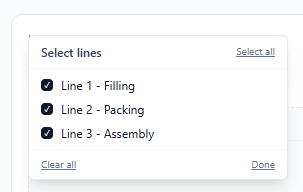

3.1 Line Filter (Multi-Select)

A multi-select button group displays all available production lines:

• Line 1 – Filling

• Line 2 – Packing

• Line 3 – Assembly

Behaviour:

• Select All by default.

• Users may deselect lines to focus on specific areas.

• This filter is applied to both the Gantt placeholder and the Scheduled WO table.

Backend Effect:

• Multi-line filter is applied in Named Queries to restrict the schedule query:

WHERE schedule.line_id = ANY(:selected_line_ids)

3.2 Date Window (Fixed +3 / -3 days)

Instead of choosing a date range, planners work within a fixed schedule window relative to the current date:

• Start: Today - 3 days

• End: Today + 3 days

Displayed read-only in the UI.

Backend Effect:

All schedule queries must filter by this window:

WHERE schedule.start_datetime BETWEEN :window_start AND :window_end

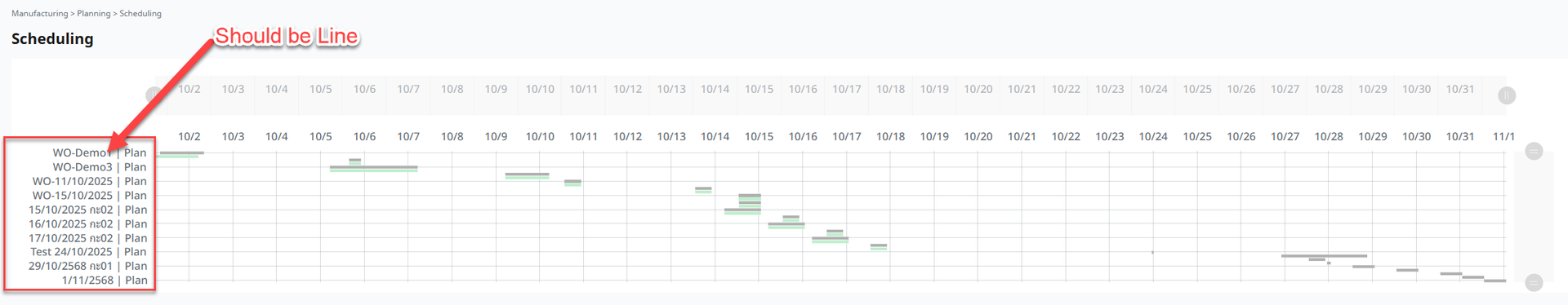

3.3 Gantt Placeholder

A placeholder is displayed. In the final implementation, this will be replaced with:

• Ignition Perspective Timeline/Gantt implementation

• Or a custom SVG/canvas component driven by the schedule query

For now, the placeholder reflects the filtered date range and selected lines visually.

4. Unscheduled / Scheduled Work Order Tables

4.1 Tab Structure

Two tabs:

• Unscheduled

• Scheduled

Users switch between them using the tab header.

Only one table is visible at any time.

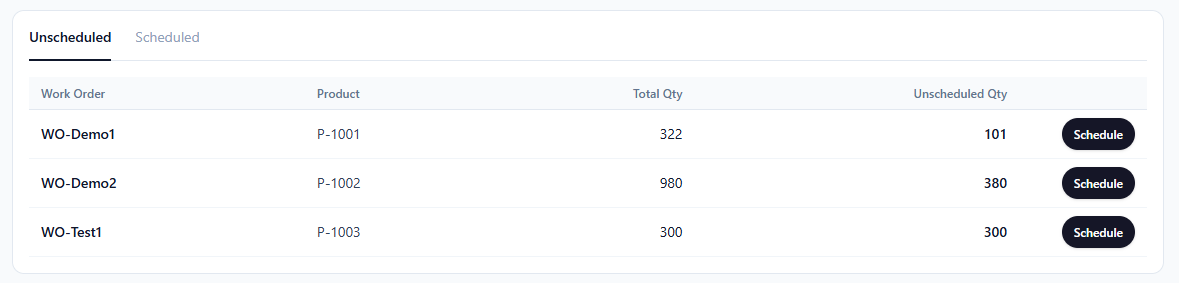

4.2 Unscheduled Table

Columns:

Behaviour:

• If the user clicks Schedule, a popup opens (Section 5).

• If Unscheduled Qty = 0, the row is hidden (or disabled).

Backend Logic:

Unscheduled Work Orders are derived, not stored separately:

SELECT
  wo.id,
  wo.wo_code,
  wo.product_code,
  wo.total_qty,
  (wo.total_qty - COALESCE(SUM(schedule.quantity), 0)) AS unscheduled_qty
FROM work_order wo
LEFT JOIN schedule ON schedule.work_order_id = wo.id
GROUP BY wo.id
HAVING (wo.total_qty - COALESCE(SUM(schedule.quantity), 0)) > 0;

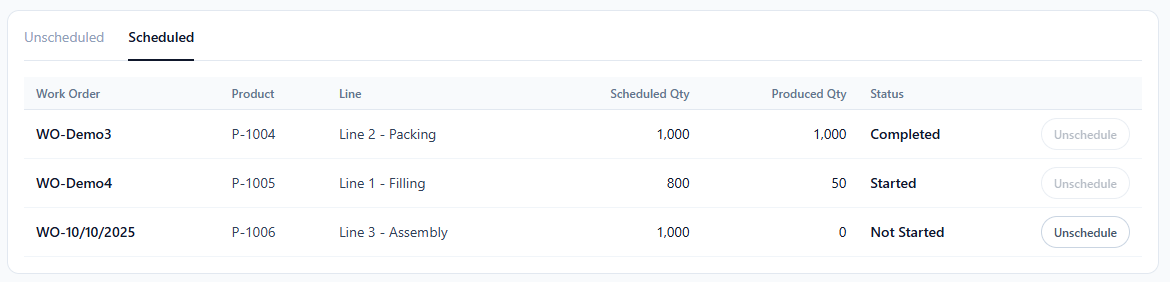

4.3 Scheduled Table

Columns:

Behaviour:

• Unschedule button is enabled only when Status = Not Started.

• If Status = Started / Completed → button disabled.

Backend Constraints:

A schedule record cannot be deleted if a run already exists:

SELECT COUNT(*) FROM production_run WHERE schedule_id = :schedule_id;

If count > 0 → NO UNSCHEDULE.

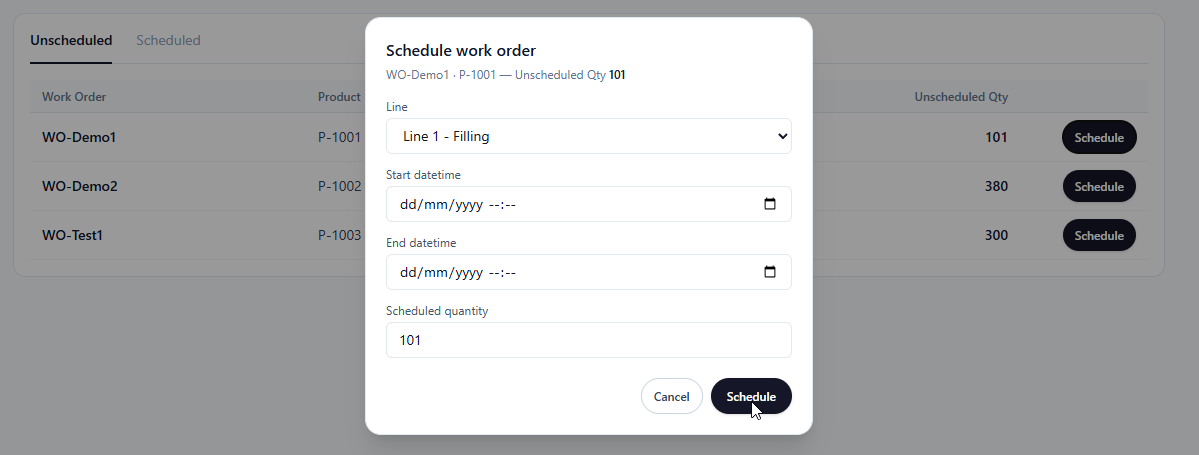

5. Schedule Work Order Popup

This popup appears when user clicks Schedule on an Unscheduled WO.

5.1 Fields

Default Scheduled Quantity = UnscheduledQty.

Example top label:

WO-Demo1 · P-1001 — Unscheduled Qty 101

5.2 Insert Schedule Logic

When user submits:

1. Insert new row into schedule table:

INSERT INTO schedule (
  work_order_id,
  line_id,
  quantity,
  start_datetime,
  end_datetime
)
VALUES (:wo_id, :line_id, :qty, :start_dt, :end_dt)
RETURNING id;

1. Recalculate UnscheduledQty:

UPDATE work_order
SET unscheduled_qty = total_qty - (
  SELECT SUM(quantity)
  FROM schedule
  WHERE work_order_id = :wo_id
);

1. If unscheduled_qty = 0 → Work Order disappears from Unscheduled tab.

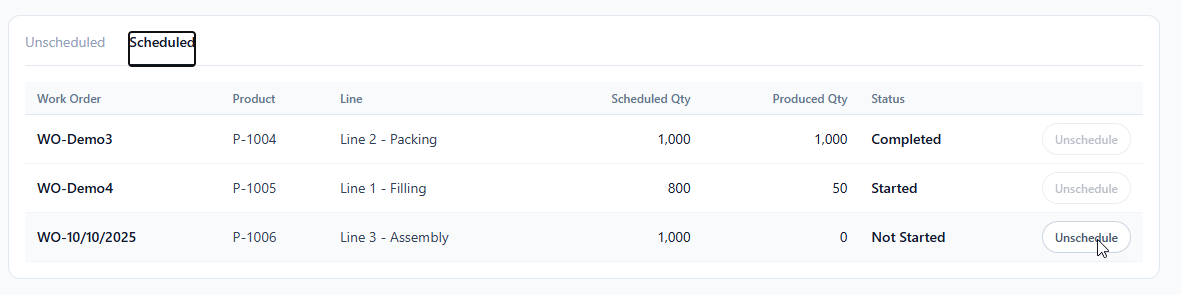

6. Unschedule Behaviour

Triggered from Scheduled tab.

6.1 Valid Unschedule (Not Started)

If:

• schedule.status = “Not Started”

• AND no production_run exists referencing the schedule

Then backend:

DELETE FROM schedule WHERE id = :schedule_id;

After deletion, the WO appears again in Unscheduled with updated UnscheduledQty.

6.2 Invalid Unschedule (Started or Completed)

If schedule.status ≠ “Not Started” OR run exists:

• Block deletion.

• Show validation message (Ignition message box):

  “Cannot unschedule. A production run has already begun for this schedule.”

7. Backend Flow Summary

8. Ignition Implementation Requirements

8.1 Named Queries

A. Get Unscheduled Work Orders

Dynamic filter: line filter not needed here.

B. Get Scheduled Work Orders

Filters required:

• selected lines

• window_start, window_end

C. Insert Schedule

Parameters:

• wo_id

• line_id

• quantity

• start_datetime

• end_datetime

D. Delete Schedule

Parameter:

• schedule_id

• backend must enforce “cannot delete if run exists”

8.2 Perspective Components

• Multi-select Lines → Repeated buttons or multi-select dropdown

• Gantt → placeholder now, real component later

• Tab Container → Unscheduled / Scheduled

• Two Perspective Tables

• Popup View for schedule form

9. Future Enhancements (Optional)

• Drag-and-drop Gantt scheduling

• Schedule conflict detection

• Auto-split scheduling for overlapping windows

• Integration with APS / planning system

• Real-time production load visualization per line

10. Summary

This Work Order Scheduling page provides a clean, intuitive interface for planning production in Nova MFG.

The behaviour fully matches the expected backend logic:

• Schedules are explicit database records.

• Unscheduled WOs are dynamically calculated.

• Unscheduling is strictly controlled based on run existence.

• UI behaviour mirrors database state.
